Item # bci2733215

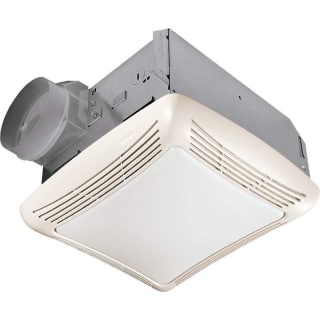

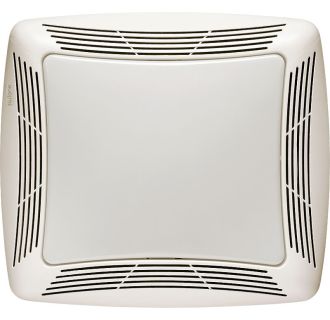

NuTone 50 CFM 2.5 Sone Ceiling Mounted HVI Certified Bath Fan with Incandescent Light

Model: 763

$50.44
Finish: Choose Finish
  • White
    White
    $50.44
    Special Order

Free Shipping!

Special Order

Product Overview

Features:

  • Features a powerful 50 CFM permanently lubricated and sealed motor that's specifically designed for continuous use applications.
  • Compact housing mounts directly to inboard joists, making retrofit or new installation applications straight-forward and simple.
  • Equipped with 100 watt incandescent light ensuring your bathroom is brightly lit without the need for additional fixtures (bulbs sold separately).
  • Compatible with a number of Broan multi-function and time control wall switches (sold separately).
  • UL listed and suitable for use over bathtubs and showers when connected to a GFCI-protected branch circuit.

Product Technologies:

Light-IncandIncandescent Lighting: We know that a comfortable and well-lit space is important to you as your prepare for your day. Illuminate your bathroom with the warm light of an incandescent bulb.



Sones-medMid Sones: We know that comfort and ambience matter in your bathroom. This fan produces 2.5 sones of sound output, keeping the noise in your bathroom at a reasonable level.



CFM-lowLow CFM Capacity: This fan has an efficient 50 CFM (cubic feet per minute) of clearing capacity designed for smaller bathrooms. Controlling humidity in your bathroom extends the life of your décor and makes for a more hospitable space to prepare for the day ahead.



Specifications:

  • CFM: 50
  • Sones: 2.5
  • Duct Size: 4 Inch Round
  • Grill Width: 12 Inches
  • Grill Length: 10.75 Inches
  • Lighting Type: Incandescent (bulb not included)
  • HVI Certified: Yes
  • UL Listed: Yes
  • CSA Approved: Yes
  • Housing Length: 8-1/4"
  • Housing Width: 8"
  • Housing Depth: 5-3/4"




This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

CFM
50
CFM (High)
50
Duct Size
4" Round
Grille Length
10.75 in.
Grille Width
12 in.
Housing Depth
5.75 in.
Housing Length
8.25 in.
Housing Width
8 in.
Max Ventilation Area
45 sq. ft.
Product Weight
5.2 lbs.

Included Components

Heater Included
No
Light Included
Yes
Motion Sensor
No

Characteristics and Features

Bulb Base
Medium (E26)
Bulb Type
Incandescent
Duct Discharge
Horizontal
Fan Type
Bath Fan
Function
Bath Fan, Light
Grille Finish
Whites
Humidity Sensing
No
Material
Plastic
Mount Type
Ceiling
Night Light
No
Number of Bulbs
1

Electrical and Operational Information

Amperage
1.4
Sones
2.5
Speeds
1
Voltage
120
Wattage
42.1
Watts Per Bulb
100

Warranty and Product Information

Certifications
HVI, UL, CSA
Collection
Decorative
Energy Star
No
Manufacturer Warranty
1 Year Limited
Title 20 Compliant
Yes
