Item # bci2243045
The Delta T13H382-05 has been discontinued
** See similar or replacement items below **

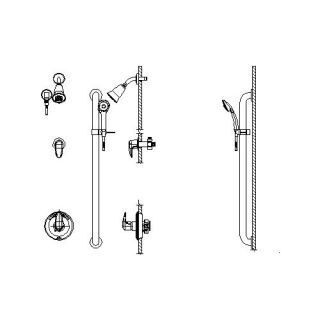

Delta Commercial 11T Tub and Shower Trim Package
Model: T13H382-05
from the Commercial Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Product Overview
This product has additional required/recommended options. To configure, add to your cart.
- Shower Valve Required
Product Features:
- Pressure Balance cartridge
- Limit stop for pre-setting Maximum temperature
- Integral checks in the cartridge prevent crossflow between Hot and Cold water inlets
- Non-Removable Blue/Red visual cover indicator for Cold, Mixing and Hot handle positions
- Standard 24" Stainless Steel Bar with ADA Slide handshower and shower diverter valve-backflow protection provided by two integral check valves in handshower
- ADA Compliant diverter handle
- Handshower Flow Rates as listed unless OPTIONAL Handshower #2 selected
- Handshower MAX: 1.5 GPM @ 80 PSI (5.7 L/min @ 552 kPa)
- Handshower MIN: 1.13 GPM @ 45 PSI (4.3 L/min @ 310 kPa)
- Handle#: 2 - Metal Lever Handle – ADA compliant - 85mm (3.33")
- #8 Shower - H2Okinetic Technology™ Showerhead, Arm & Flange
- #8 Shower Flow Rate MAX: 1.5 GPM @ 80 PSI (5.7 L/min @ 552 kPa)
- Optional 914mm(36") stainless steel slide bar to replace standard bar
Product Certifications:
- ASME A112.18.1 / CSA B125.1
- Pressure Balance Valve ASSE 1016
- Pressure Balance and Diverter lever handles ADA compliant to ICC/ANSI A117.1/ADA
- Handshower backflow protection provided by two integral certified check valves in series, which operate independently, ASME A112.18.3
- Handshower ADA compliant to ICC/ANSI A117.1/ADA
Additional Delta Links
This product is listed under the following manufacturer number(s):
- Delta T13H382-05*
Chrome
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Flow Rate (GPM)
1.5
Hose Length
69 in.
Included Components
Diverter Included
Yes
Handles Included
Yes
Handshower Included
Yes
Hose Included
Yes
Slide Bar Included
Yes
Valve Included
No
Wall Supply Included
Yes
Characteristics and Features
Diverter Location
Wall Mounted
Handle Material
Metal
Handle Style
Lever
Handshower
Single Function
Installation Type
Wall Mounted
Material
Brass
Number Of Handles
1
Scald Guard
Yes
Showerhead
Single Function
Spray Pattern
Full
Spray Settings
1
Theme
Basic
Valve Type
Pressure Balanced
Warranty and Product Information
ADA
Yes
Approved for Commercial Use
Yes
CA Drought Compliant
Yes
Country Of Origin
USA
Made in America
Yes
