Item # bci2951900

Axor Uno Thermostatic Shower System with Shower Head, Handshower, Slide Bar, 3 Bodysprays, and Volume Control with Rough In Valves - Engineered in Germany, Limited Lifetime Warranty

Model: AXSS-Uno-T03-000

Finish: Choose Finish
  • Chrome
    Special Order

Free Shipping!

Special Order

Product Overview

All included components are covered by Axor's limited lifetime warranty

Valve Trim Features & Specifications

  • Thermostatic valve trim - one dial controls temperature of water
  • Diverter trim allows for transfer of water to three different functions
  • Volume control trim controls volume of water delivered to system
  • Thermostatic valve cartridge with 100° safety stop - push button to override
  • Thermostatic Escutcheon (Trim Plate) Diameter: 6-3/4"
  • Thermostatic Trim Projection (From Wall): 2-7/8"

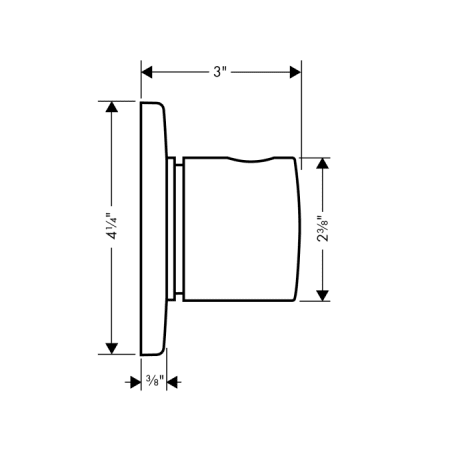

  • Diverter Trim Diameter: 4-1/4"
  • Diverter Trim Projection (From Wall): 3"
  • Volume Control Trim Diameter: 2-5/8"
  • Axor's iBox rough-in valve is included - no need to purchase separate valve

Product Technologies

iBox Universal Valve: The Hansgrohe iBox universal rough-in offers a wealth of options for the shower. Accommodating all trim styles, Thermostatic or Pressure Balance, the iBox rough-in is the universal rough that makes a multitude of shower configurations possible. Ever since its launch in 2001, the iBox universal rough-in has been setting new standards in the bathroom and has maintained a leading position in the showering world.

Advantages of the iBox Universal Valve

Rotation Symmetry
180° Rotational Symmetry

Function Block
Trim Includes Function Block

Water-Tight Seals All Around

Service Stops
Built-In Service Stops

Pipe Flushing
Simplified Pipe Flushing

Reduced Noise
Reduced Noise Transfer

Shower Head Features & Specifications

  • Single function shower head - features RainAir spray pattern
  • Shower Head Diameter: 9-7/16"
  • Shower Head Height: 2-3/8"
  • Flow Rate: 2.5 GPM
  • Shower Arm Extension: 4"

Handshower / Slide Bar Features & Specifications

  • Includes handshower, slide bar, hose, and wall supply
  • Multi-function handshower - featuring full and mono spray patterns
  • Slide bar is constructed of brass
  • Features a handshower holder with angle adjustment
  • Flow Rate: 2.5 GPM

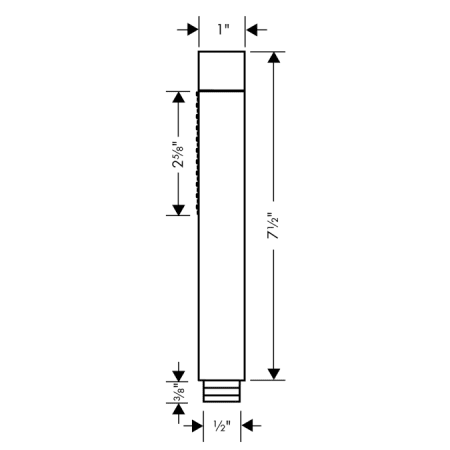

  • Handshower Height: 7-1/2"
  • Hose Length: 63"
  • Center-to-Center: 36" (distance between installation points on the slide bar)
  • Overall Slide Bar Length: 41-1/2"
  • Slide Bar Projection: 6"

Bodyspray Features & Specifications

  • Three bodysprays are included in this package
  • Bodyspray can be adjusted 26° in any direction
  • Flow Rate: 1.4 GPM
  • Bodyspray Dimensions: 2-5/8" W x 2-5/8" H
  • Spray Face Diameter: 2-1/2"

About Axor

Founded in Germany's Black Forest back in 1901, Axor is committed to building a strong sense of tradition. Featuring unsurpassed quality, design and performance, Axor's products offer a lifetime of satisfaction. Through many breakthroughs in comfort and technology, they bring the perfect solution you need to make the most of your water experience. With a sharp eye for innovation, Axor is consistently designing products with exceptional durability, built to not only be highly functional, but also a source of luxury and pleasure. With all of the showers and faucets they offer, new useful functions and details are at the core, making daily use as easy and comfortable as possible so that you may enjoy your Axor products for many years to come.

This product is listed under the following manufacturer number(s):

*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Bodyspray Flow Rate (GPM)
Bodyspray Height
2.625 in.
Bodyspray Width
2.625 in.
Flow Rate (GPM)
Handshower Flow Rate
Hose Length
63 in.
Shower Arm Reach
4 in.
Showerhead Flow Rate (GPM)
Showerhead Height
2.375 in.
Showerhead Width
9.438 in.

Included Components

Bodysprays Included
Diverter Included
Handles Included
Handshower Included
Hose Included
Integrated Diverter
Shower Head Included
Slide Bar Included
Valve Included
Volume Control
Wall Supply Included

Characteristics and Features

Diverter Location
Wall Mounted
Faucet Type
Shower System
Handle Style
Knob, Lever
Multi Function
Installation Type
Wall Mounted
Number Of Bodysprays
Number Of Handles
Scald Guard
Rain Shower
Showerhead Shape
Spray Pattern
Valve Type

Warranty and Product Information

Approved for Commercial Use
CA Drought Compliant
Manufacturer Warranty
5 Year Limited Commercial, Limited Lifetime Residential
